Product Details:
|
| HS Code: | 8483300090 | Transport Package: | Anti-Rust Paper, Carton, Wood Case Or Pallet |
|---|---|---|---|
| Processing Methods: | CNC Processing | Oil Grooves: | Cross, Ring, Spiral, Etc |
| Product Name: | Excavator Bushings | Production Capacity: | 100000.0 Piece/Pieces Per Month |
| Service: | OEM ODM | Process: | Casting/ Forging |
| After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Suitable Excavator(ton):: | 5-50t |
| High Light: | 50t Excavator Bucket Bushing,Excavator Bucket Bushing anti corrosion,50t excavator bush |
||
100-139-120 bucket track pin and bushing excavator hardened steel bushes Export to Vietnam
When should I replace my excavator pins and bushings?
Any visible slack in the pivot point during operation, also know as backhoe slop, means it's time to replace your pins and bushings. Take a close look at the pivot point to discern if the movement is in the static or dynamic part of the assembly.

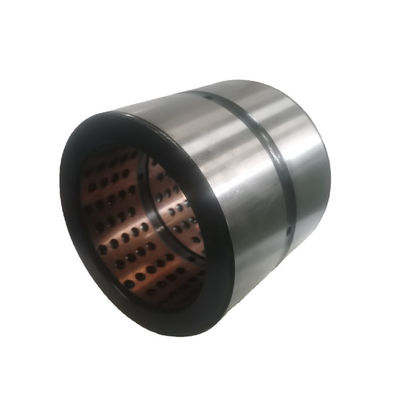

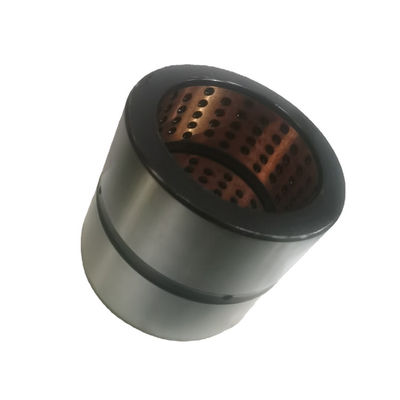

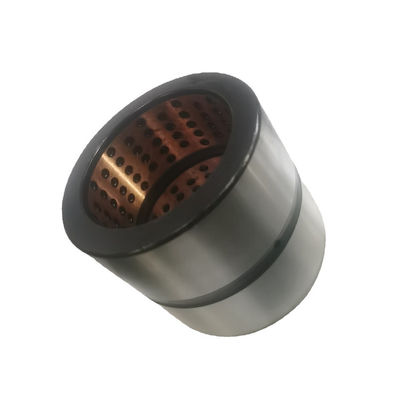

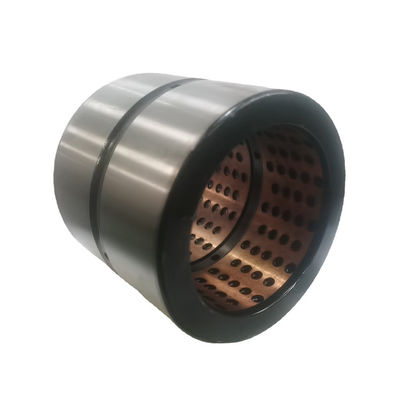

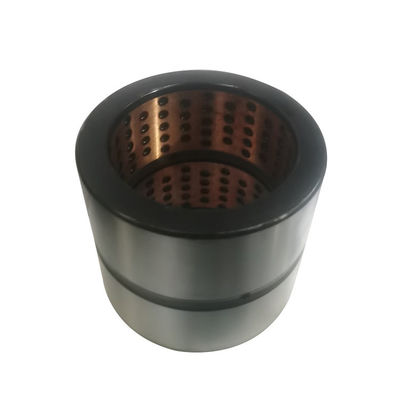

Manufacturer Hardened Steel Bushes Bucket Pin Bushings for Excavator Parts
(1) made of material C45 and 40Cr, with cross oil groove machined inside of the bearing.
(2) after heat treatment, it can be improved of the hardness and wear resistance.
(3) widely applied in excavators, cranes and some crucial parts of the construction machine.
100-139-120 bucket track pin and bushing excavator hardened steel bushes Export to Vietnam
| Bucket Pins | |||
| Size (Diameter*Height) mm | Size (Diameter*Height) mm | Size (Diameter*Height) mm | Size (Diameter*Height) mm |
| 45*260 | 55*350 | 65*300 | 80*420 |
| 45*270 | 55*380 | 65*380 | 80*520 |
| 45*330 | 55*430 | 65*440 | 80*560 |
| 45*360 | 55*460 | 65*490 | 90*730 |
| 45*380 | 55*500 | 65*520 | 100*600 |
| 50*300 | 60*320 | 70*380 | 100*800 |
| 50*390 | 60*370 | 70*440 | 110*630 |
| 55*300 | 60*450 | 70*500 | 110*730 |
| 55*340 | 60*500 | 70*540 | 120*700 |
| 55*330 | 60*520 | 70*600 | 120*800 |
| The sizes above are just for reference, we can't list all sizes here. We can supply more products as your requirements. Please feel free to send us your inquiry. | |||
| Bucket Bushings | |||
| Size (Diameter*Height) mm | Size (Diameter*Height) mm | Size (Diameter*Height) mm | Size (Diameter*Height) mm |
| 55*70*50 | 90*100*100 | 110*135*100 | 40*50*45 |
| 60*75*60 | 90*110*90 | 110*135*120 | 40*50*60 |
| 65*80*80 | 100*115*70 | 120*135*110 | 45*55*50 |
| 70*80*80 | 100*115*100 | 120*140*100 | 45*60*50 |
| 70*90*90 | 100*116*90 | 120*140*120 | 50*60*60 |
| 71*86*60 | 100*130*100 | 125*140*90 | 50*65*50 |
| 75*90*90 | 100*130*120 | 30*50*30 | 50*65*60 |
| 80*95*70 | 110*130*120 | 35*45*45 | 55*70*60 |
| 80*100*85 | 110*135*100 | 30*50*40 | 55*70*70 |
| The sizes above are just for reference, we can't list all sizes here. We can supply more products as your requirements. Please feel free to send us your inquiry. | |||
